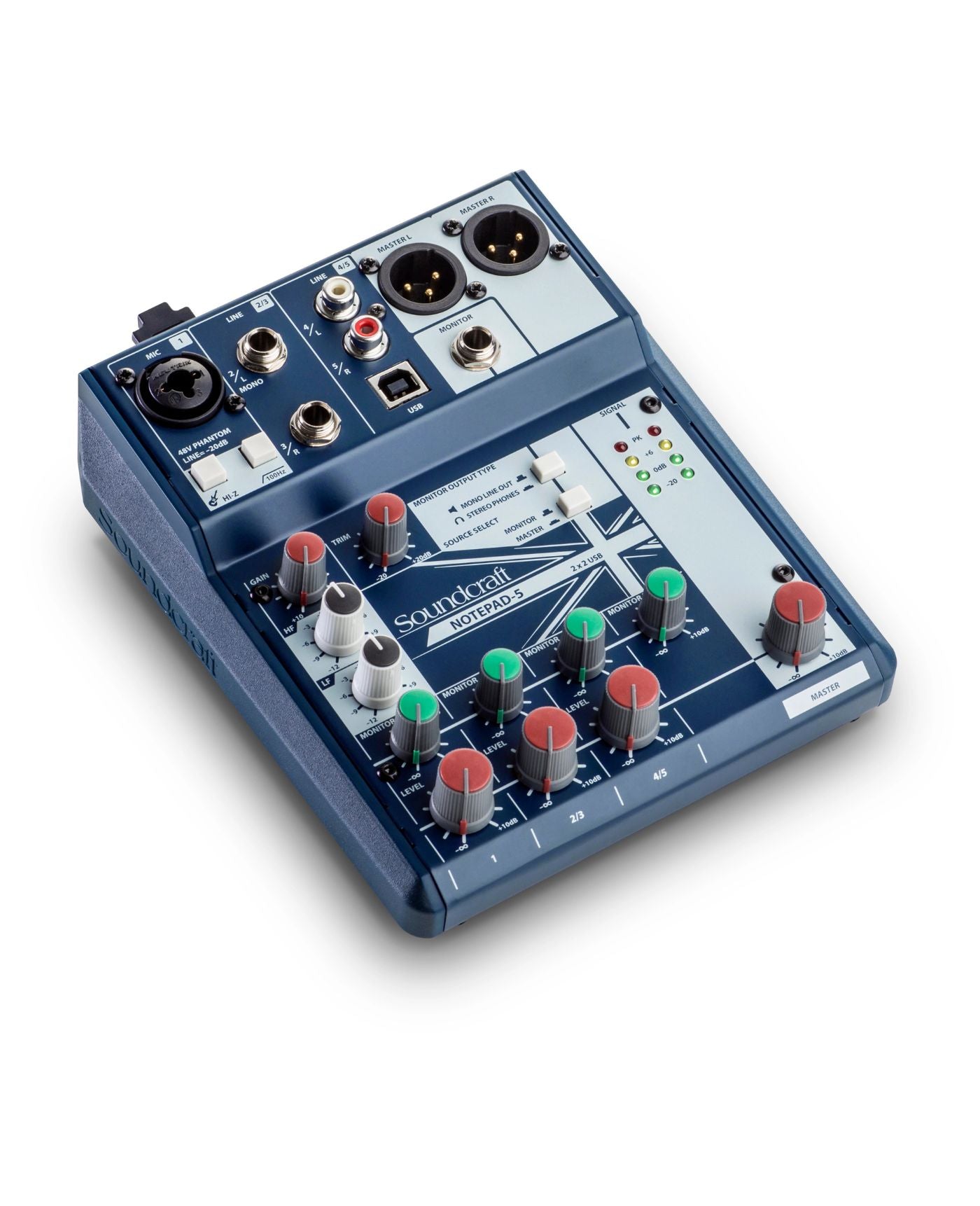

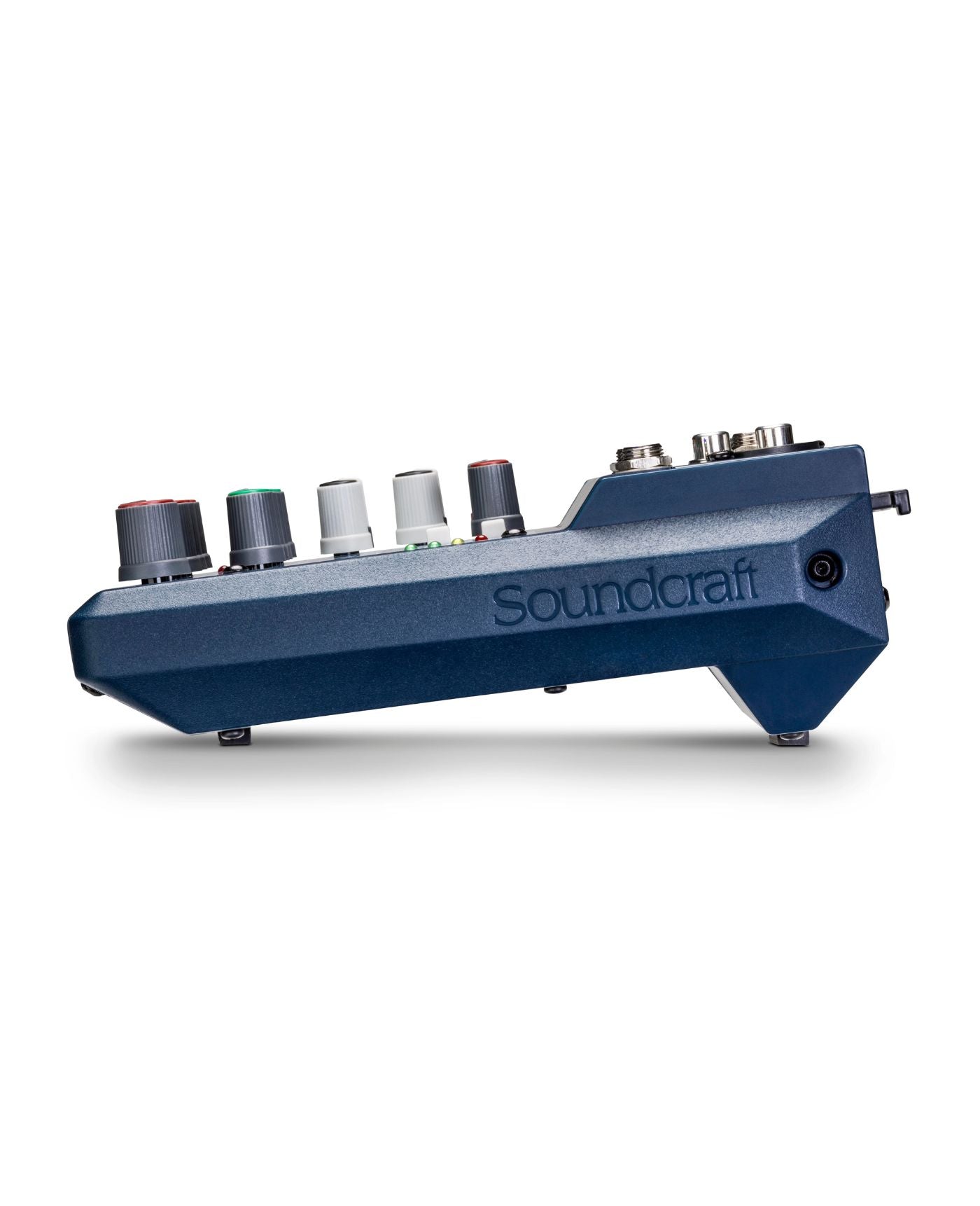

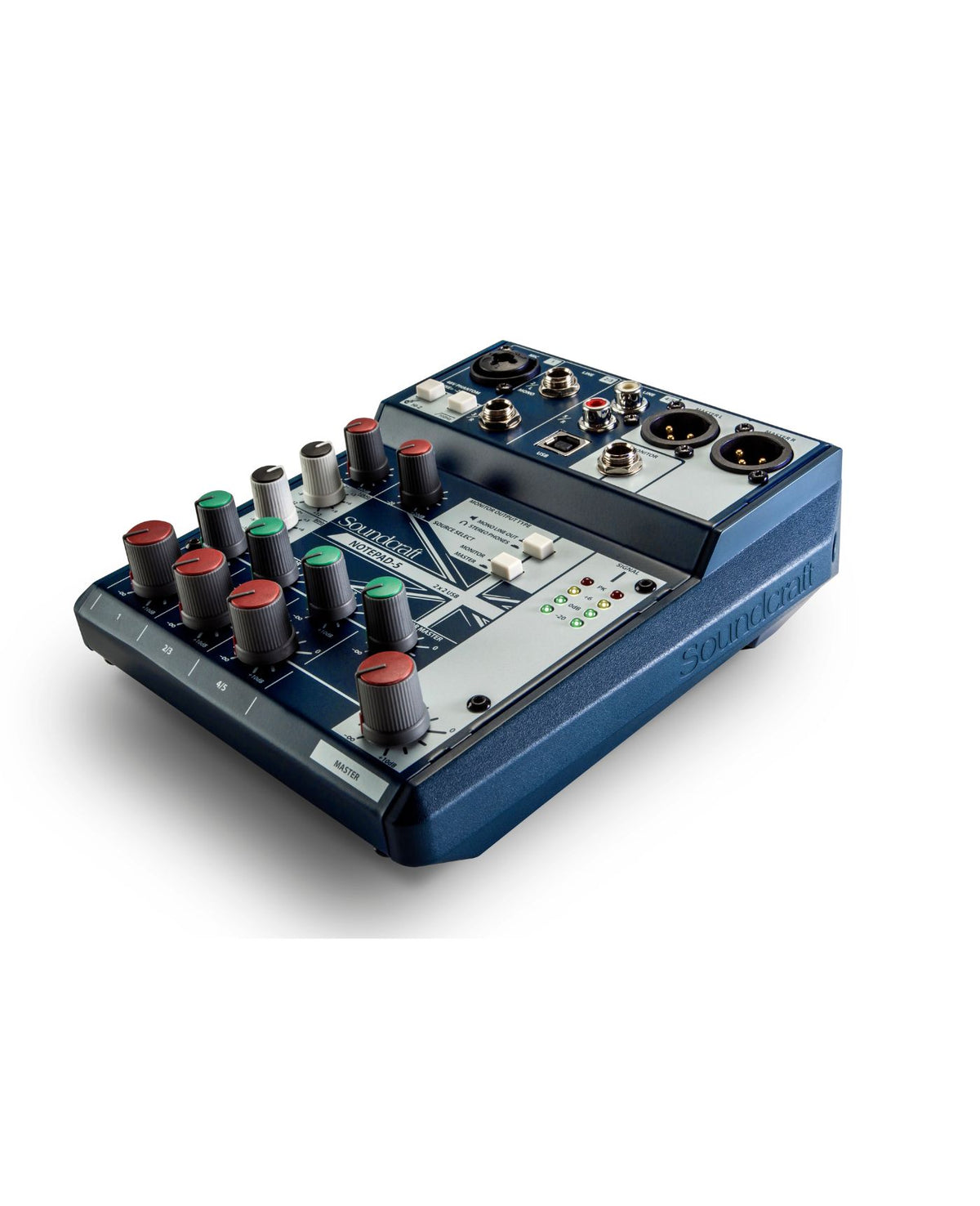

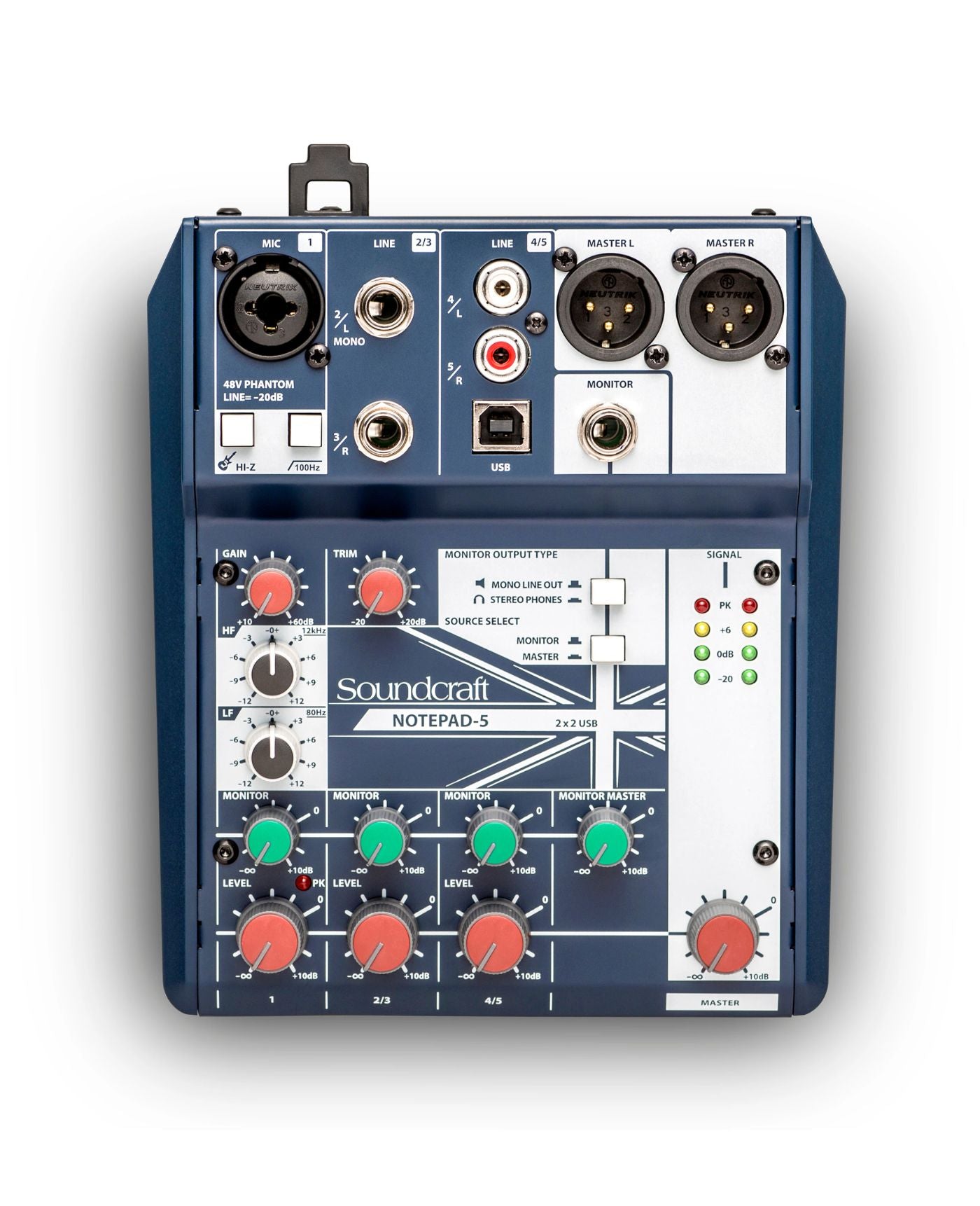

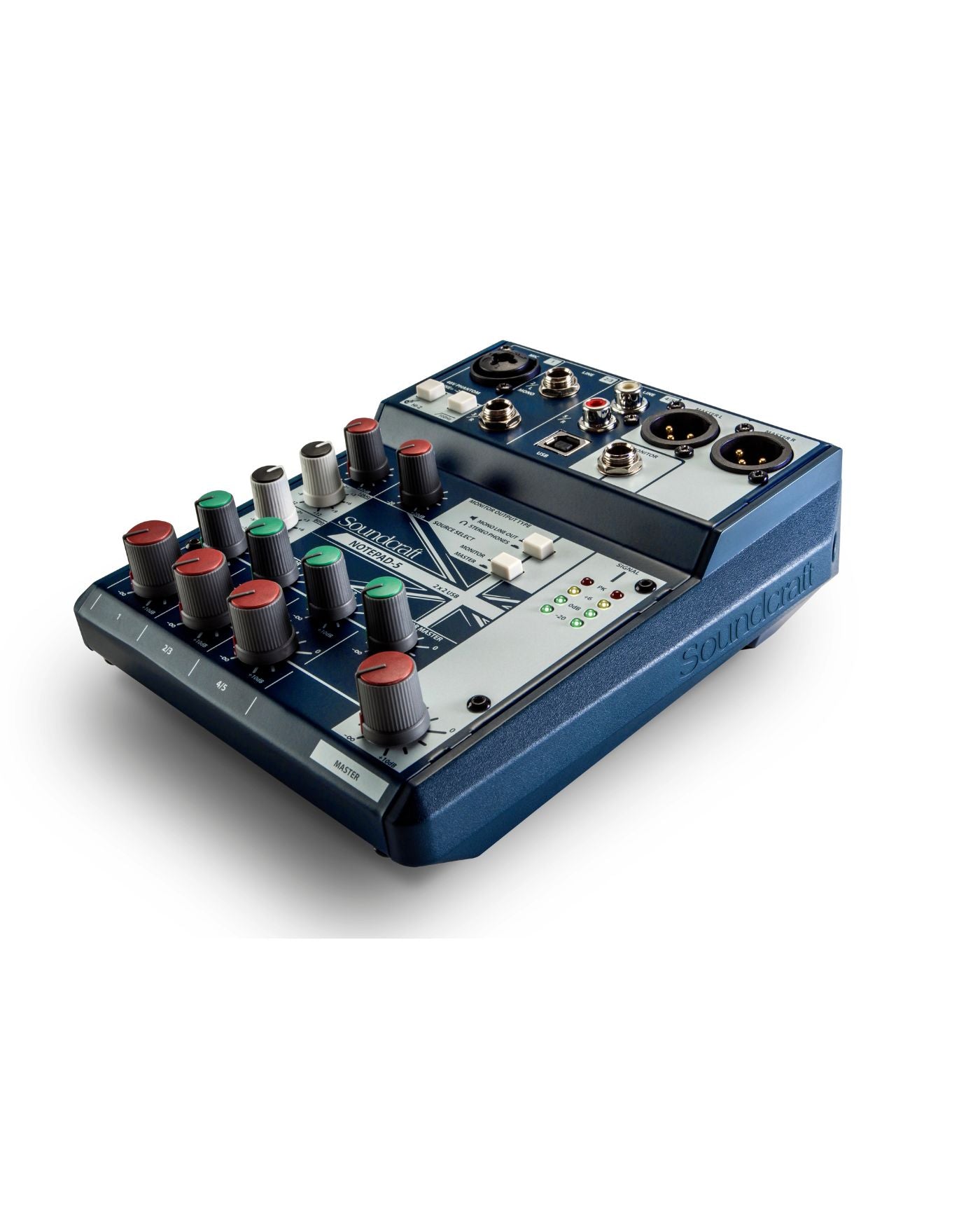

Soundcraft Notepad-5 5-Channel Desktop Mixer with USB

The Soundcraft Notepad-5 is a compact 5-channel desktop analog mixer with a built-in USB audio interface, designed for home studios, podcasters, content creators, and musicians who need professional Soundcraft audio quality in a small, affordable package. Featuring Soundcraft's acclaimed GB30 mic preamps and a clean signal path, the Notepad-5 delivers the same preamp heritage found in Soundcraft's professional consoles.

Key Features

• 5-channel analog mixing with 2 × XLR/TRS combo mic/line inputs
• Soundcraft GB30 mic preamps for professional-quality audio
• Built-in 2-in/2-out USB audio interface for direct computer recording and streaming
• 2 × stereo RCA line inputs for connecting playback devices
• 3-band EQ on mic/line channels
• Stereo RCA main outputs
• Headphone output with level control
• Compact desktop form factor — ideal for home studio, podcasting, and streaming setups
• Bus-powered via USB — no external power supply required when used with USB

Specifications

• Channels: 5
• Mic Inputs: 2 × XLR/TRS combo
• Line Inputs: 2 × stereo RCA
• USB: 2-in/2-out audio interface
• EQ: 3-band on mic/line channels
• Outputs: Stereo RCA main, headphone (3.5mm)
• Power: USB bus power or AC adapter
• Preamps: Soundcraft GB30
