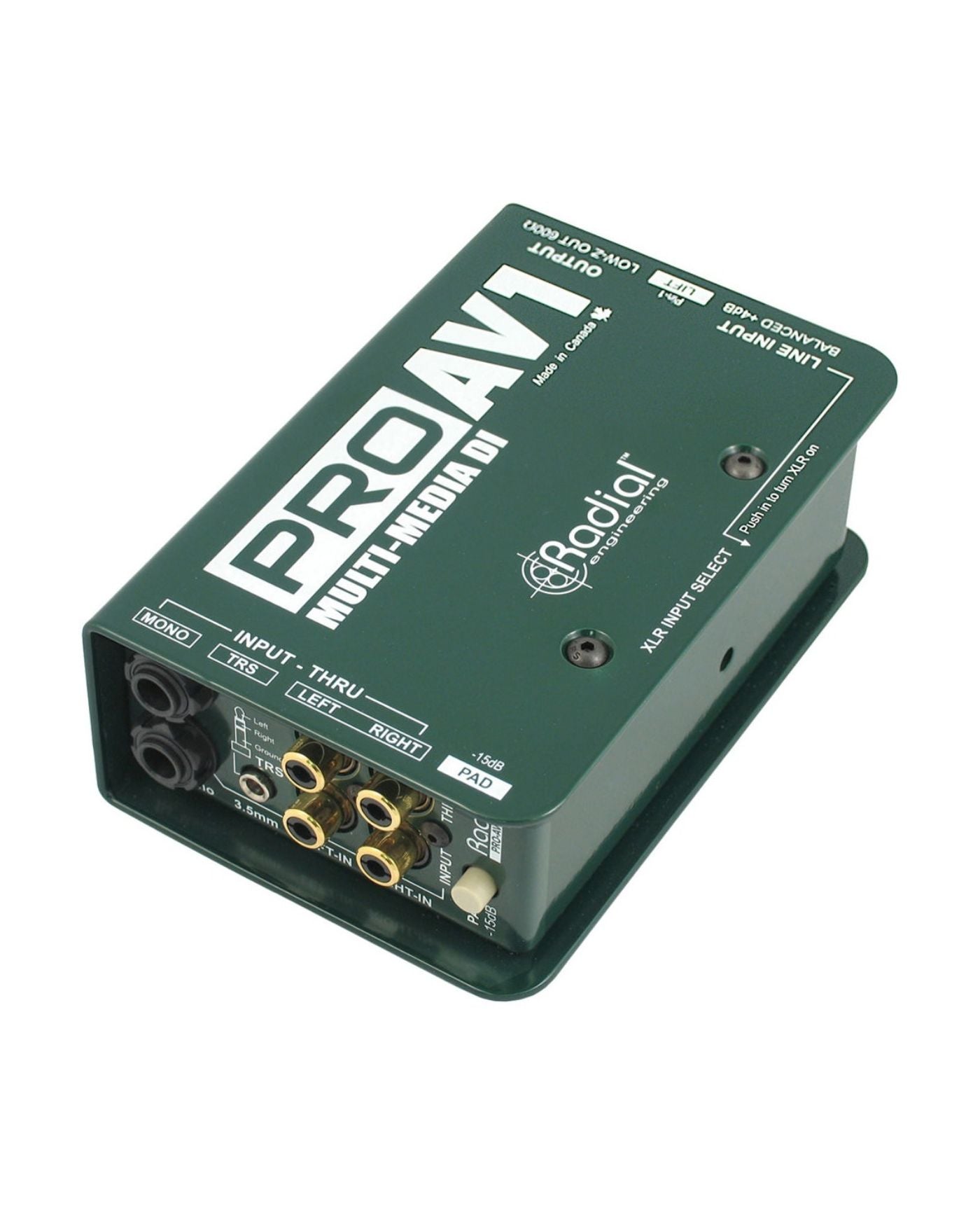

Radial ProAV1 Passive Multimedia DI with Stereo-to-Mono Merge

Connect your playback sources to professional audio systems

The Radial ProAV1 is a passive multimedia direct box with multiple input formats and automatic stereo-to-mono merging. Designed for AV applications, it connects consumer audio sources to a PA system or recording interface while reducing the number of mixer channels required.

Bring a laptop to a presentation, connect a CD player for playback or integrate a console's line-level feed. With 1/4-inch, RCA, 3.5mm stereo and line-level XLR inputs, the ProAV1 gives you flexible connectivity in one unit. Transformer isolation helps reduce hum and buzz, while the balanced mono XLR output delivers the signal to your professional audio system.

Key features

• Passive multimedia DI: A direct-box solution for AV and playback applications.
• Automatic stereo-to-mono merge: Sums stereo sources to mono to simplify routing and conserve mixer channels.

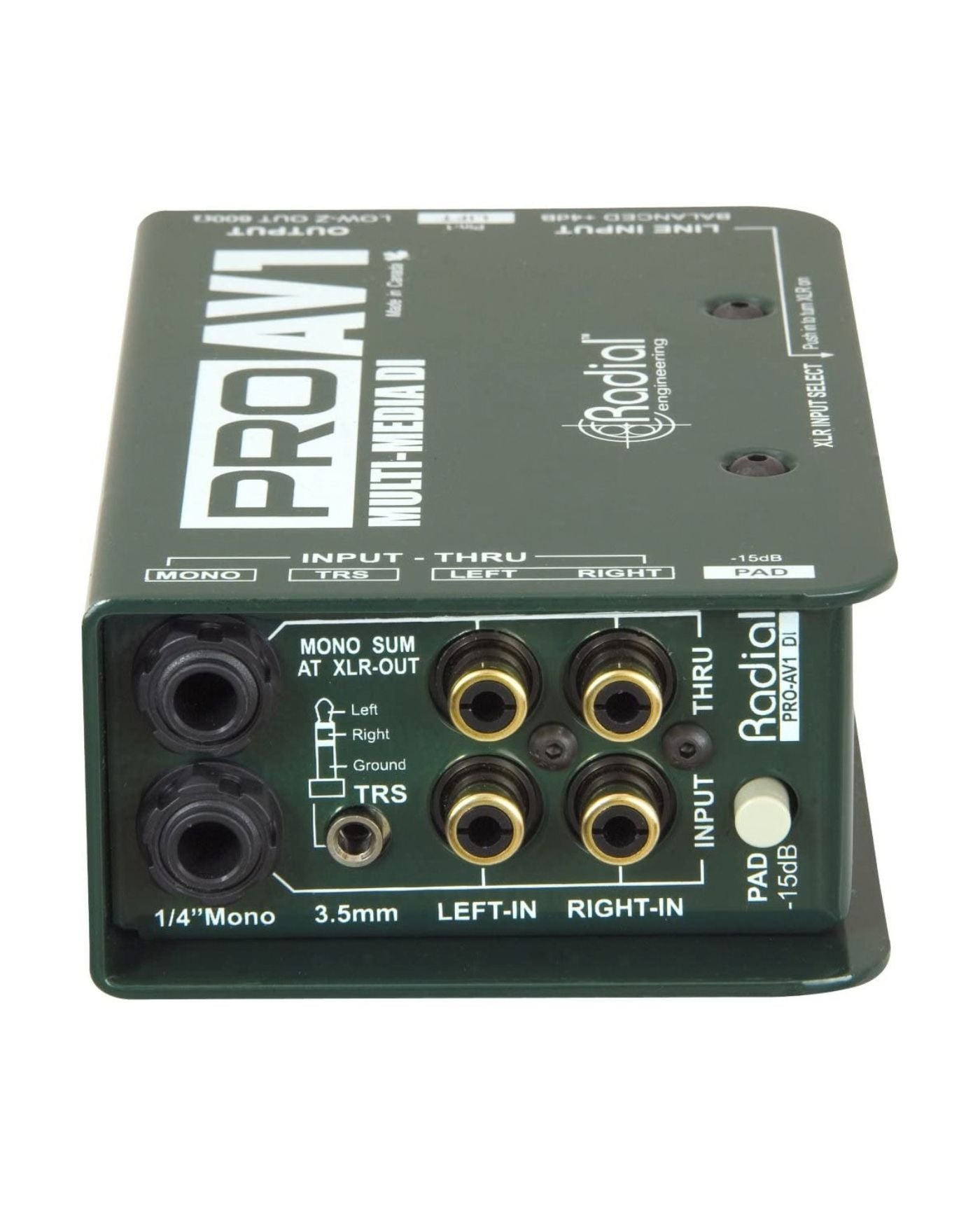

• Multiple input formats: 1/4-inch, RCA, 3.5mm stereo and line-level XLR connections.
• Transformer isolation: Helps eliminate hum and buzz from connected audio equipment.

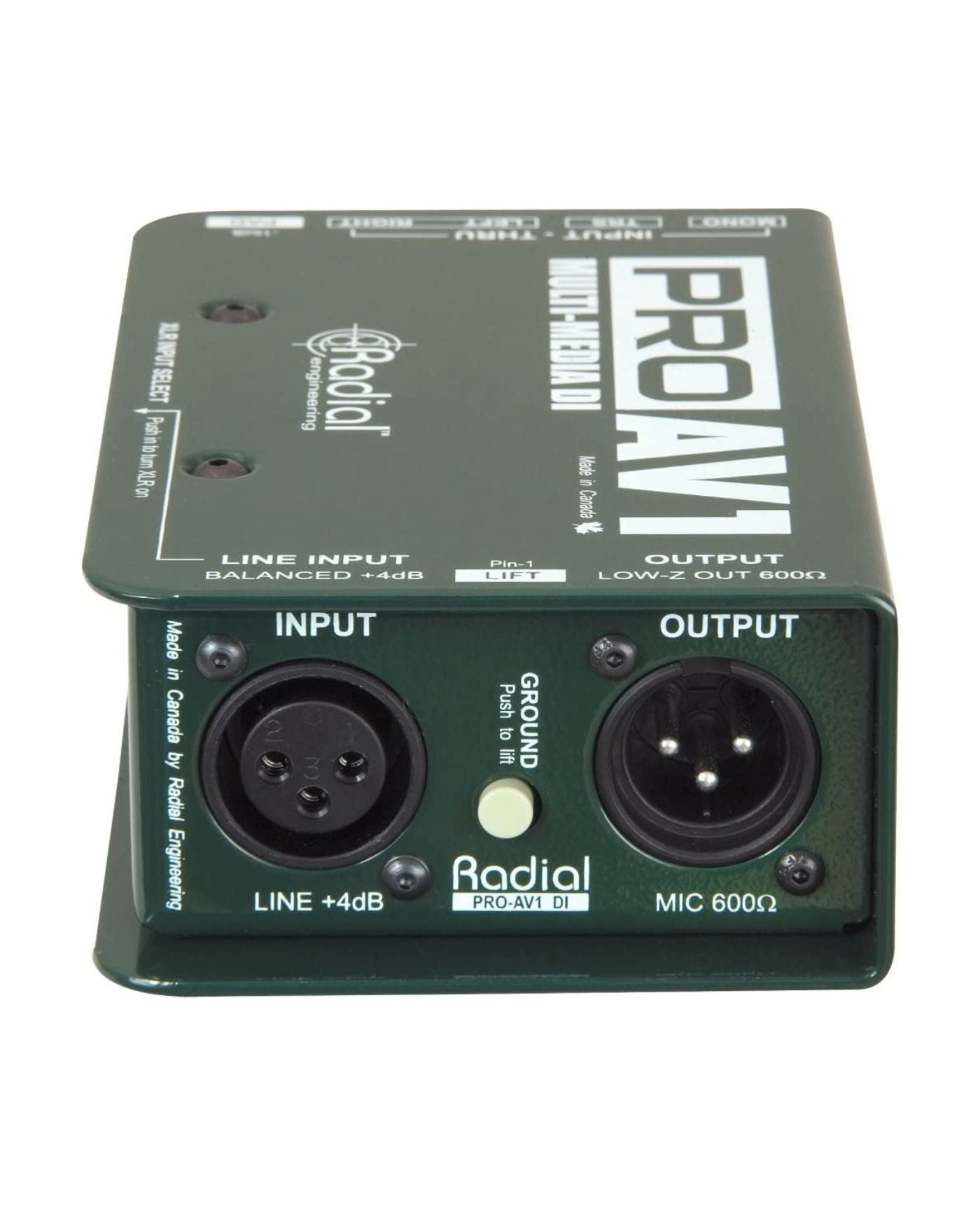

• Balanced mono XLR output: Connect to a PA system or recording interface.

Product details

• Brand: Radial
• Model: ProAV1
• Type: Passive multimedia DI
• Inputs: 1/4-inch, RCA, 3.5mm stereo and line-level XLR
• Output: Balanced mono XLR
• Manufacturer part number: R800 1112 00
