Radial IceCube Passive Balanced Line-Level Isolator

Remove ground-loop hum from your audio system

The Radial IceCube is a passive, single-channel balanced line-level isolator with an Eclipse transformer. Insert it between two line-level devices to tackle hum and buzz caused by ground loops, with straightforward XLR input and output connections.

When a powered speaker starts humming during setup, connect the IceCube between the mixer and speaker to isolate the signal path. Its ground lift switch offers additional noise reduction, making it a useful problem-solving tool for live sound, AV installations and professional audio systems.

Key features

• Transformer isolation: Eclipse transformer isolates the audio signal to eliminate ground-loop hum and buzz.
• Single balanced channel: Designed for balanced line-level audio signals.

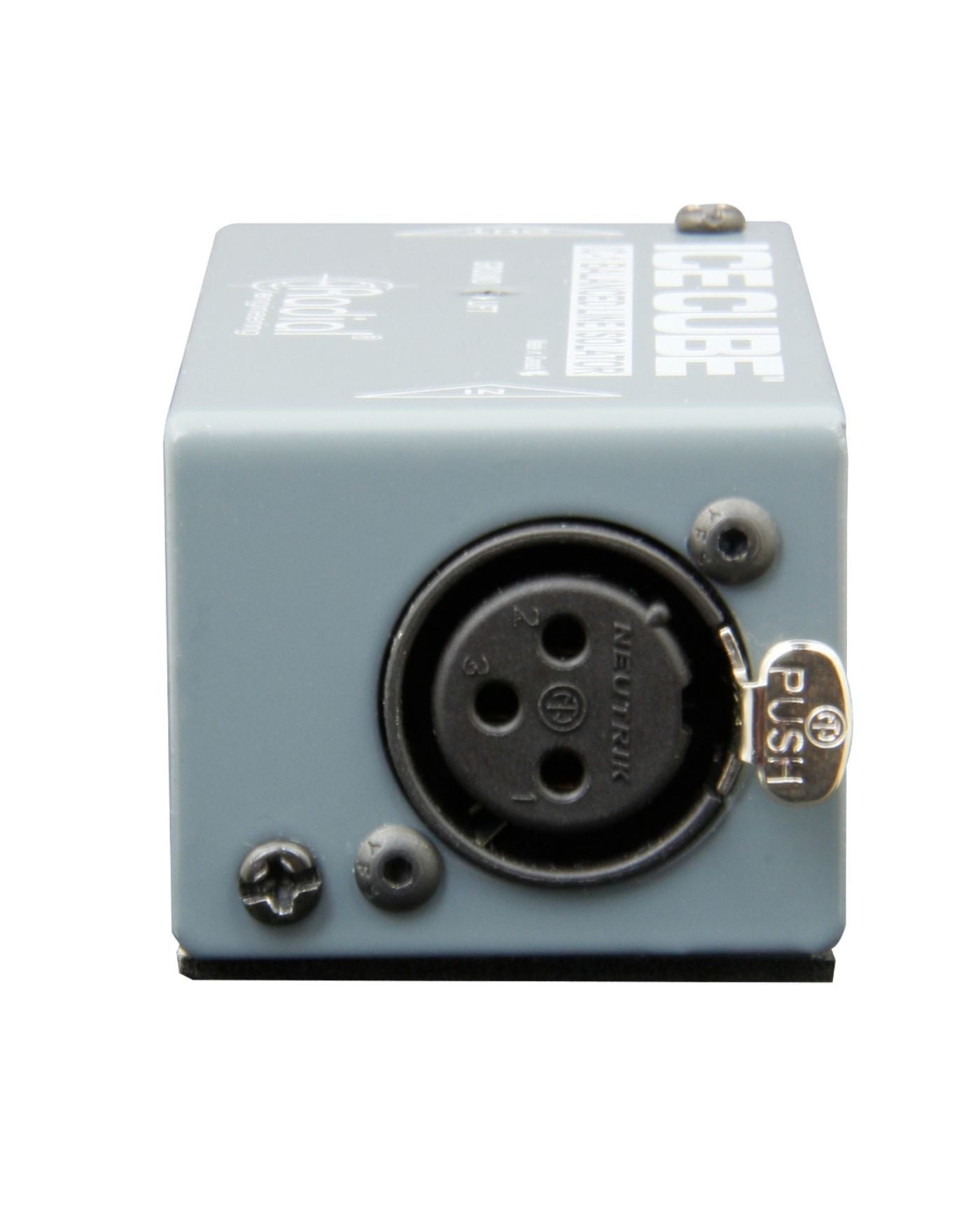

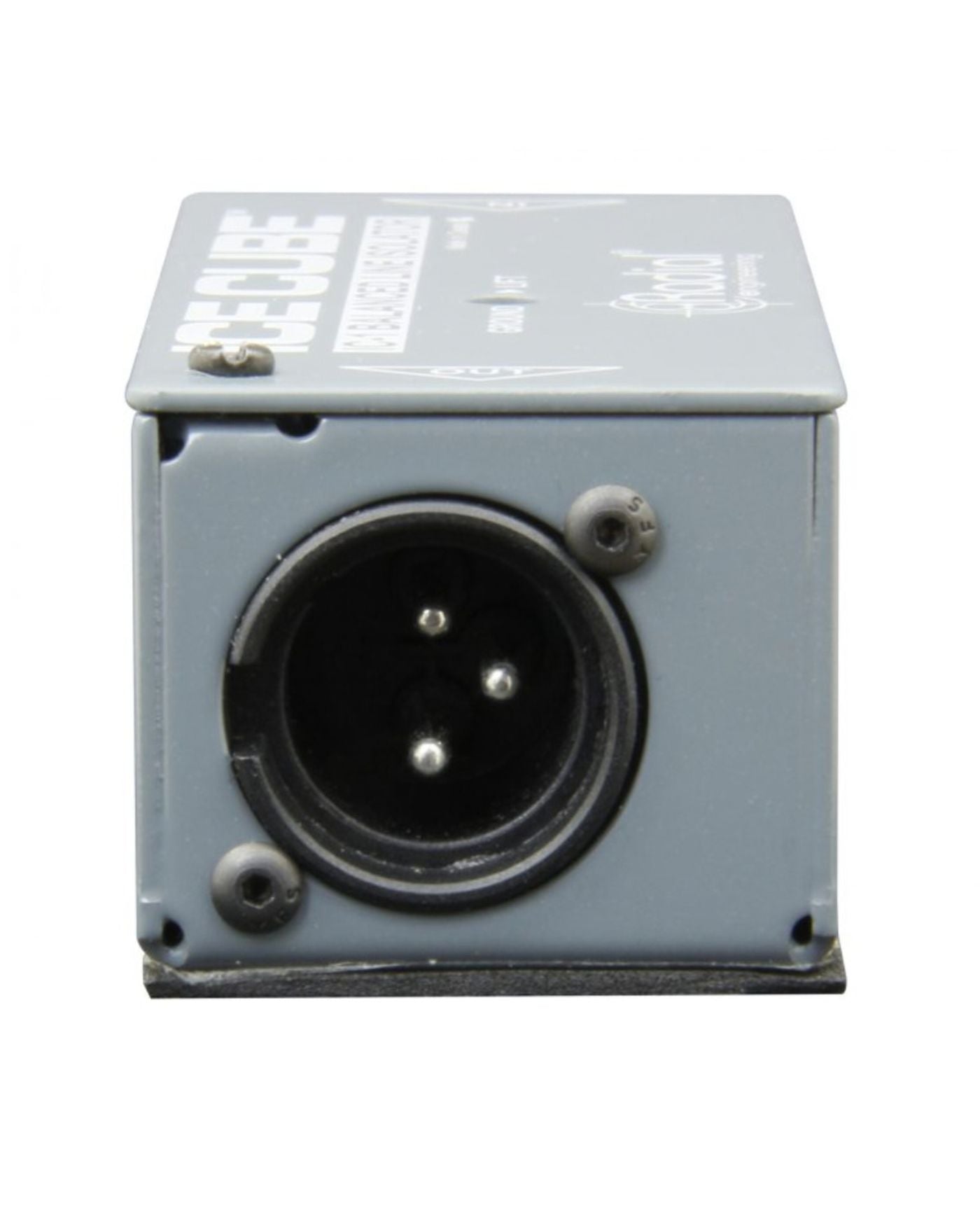

• XLR input and output: Easily insert the unit between compatible audio devices.

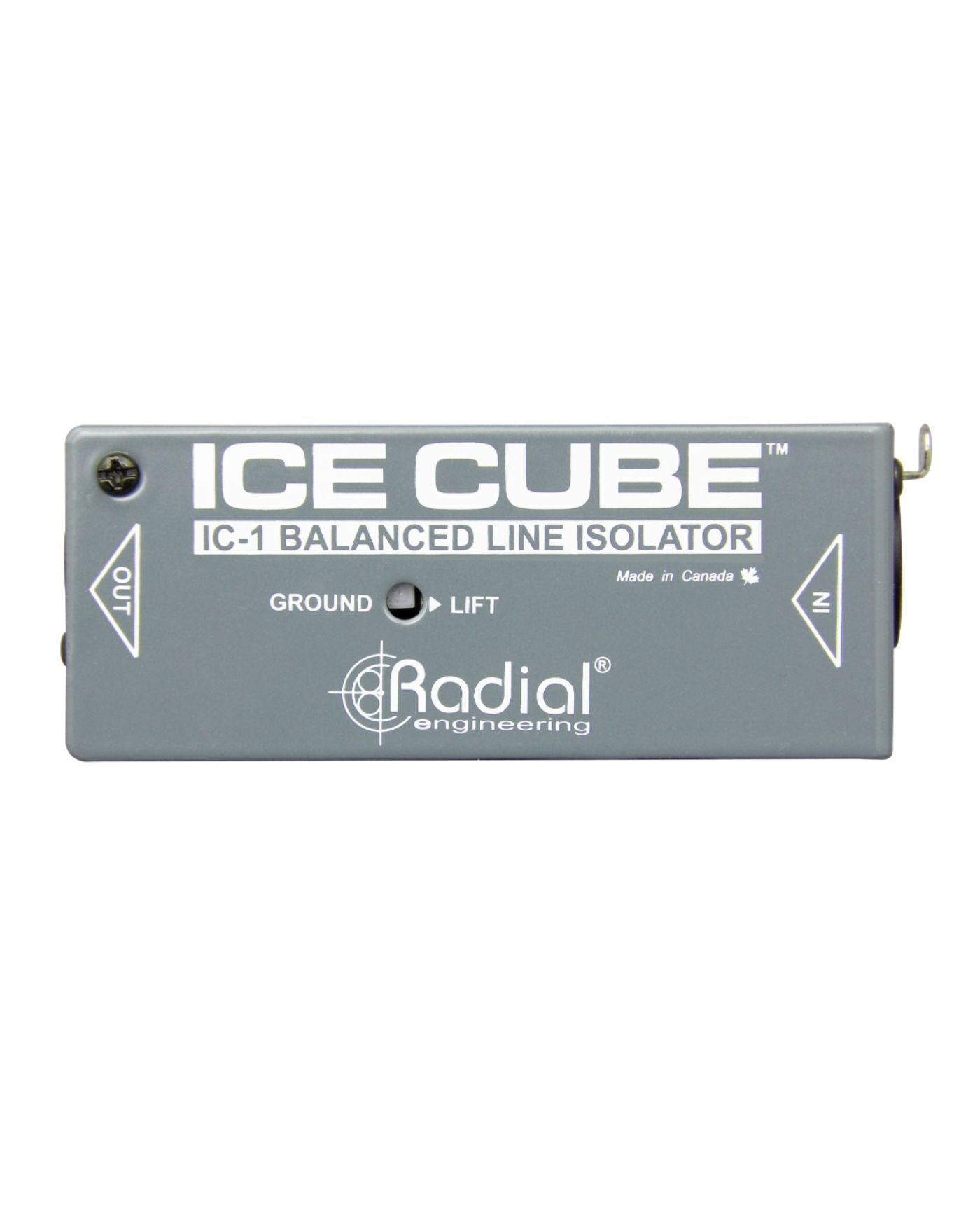

• Ground lift switch: Provides an additional option for reducing noise.
• Linear response: Exceptionally linear response from 20Hz to 18kHz.
• Professional signal handling: Handles pro output levels without distortion.
• Passive operation: No external power supply required.

Product details

• Brand: Radial
• Model: IceCube
• Type: Passive balanced line-level isolator
• Channels: One
• Transformer: Eclipse
• Connections: XLR input and output
• Ground lift: Yes
• Manufacturer part number: R800 1031 00

Suitable for isolating connections such as a mixer to a powered speaker or a crossover to a power amplifier.
