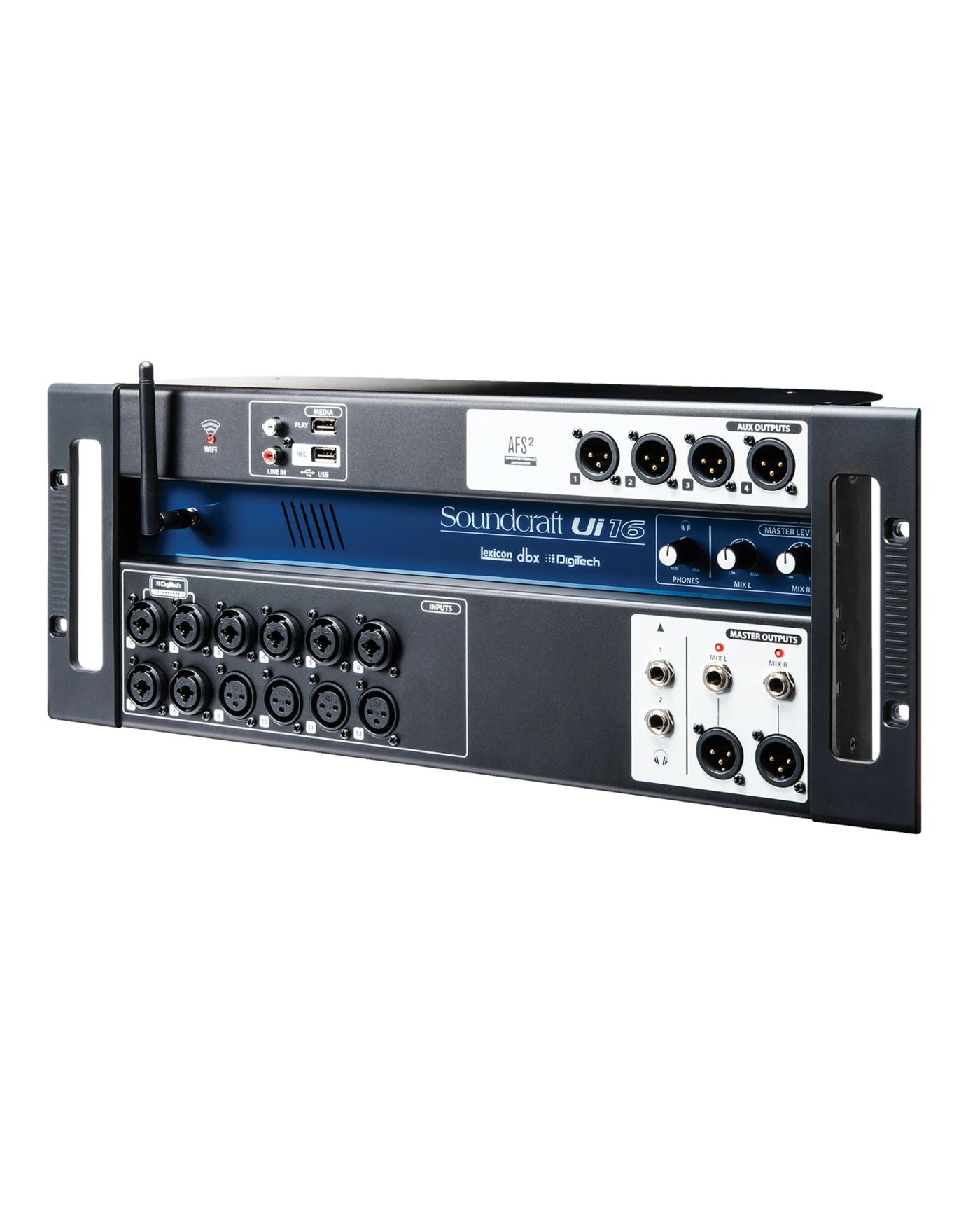

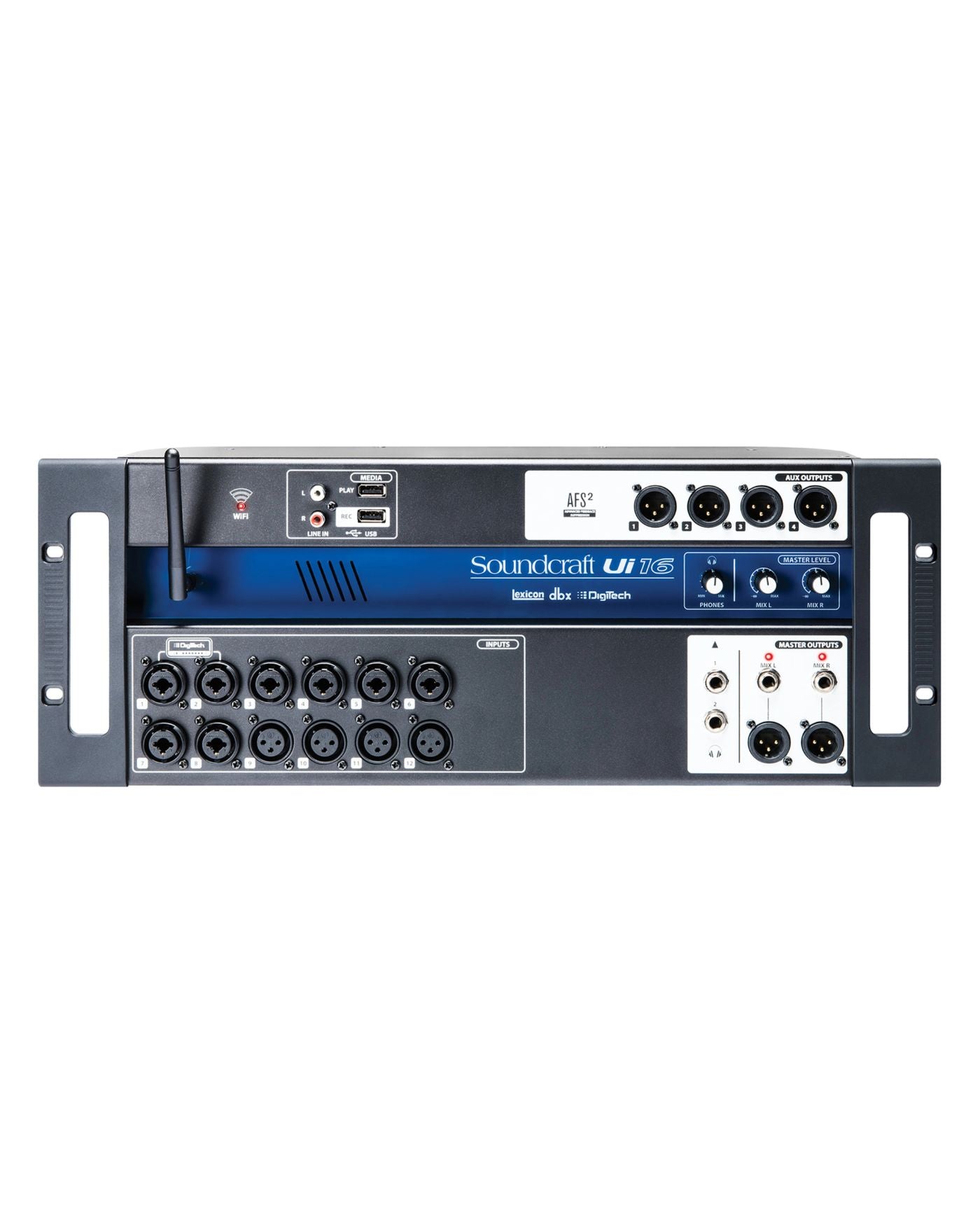

Soundcraft Ui16 16-Input Remote-Controlled Digital Mixer

The Soundcraft Ui16 is a professional 16-input remote-controlled digital mixer that steps up from the Ui12 with four additional mic/line inputs, making it ideal for bands, larger live sound setups, installed audio, and broadcast applications. Like the Ui12, it features a built-in Wi-Fi router for browser-based control from any smartphone, tablet, or laptop — no dedicated app required — and is powered by Harman signal processing with dbx AFS2 feedback suppression and Lexicon effects.

Key Features

• 16 inputs: 12 × Neutrik combo XLR/TRS mic/line inputs + 2 × RCA stereo line inputs + 1 × stereo 3.5mm input

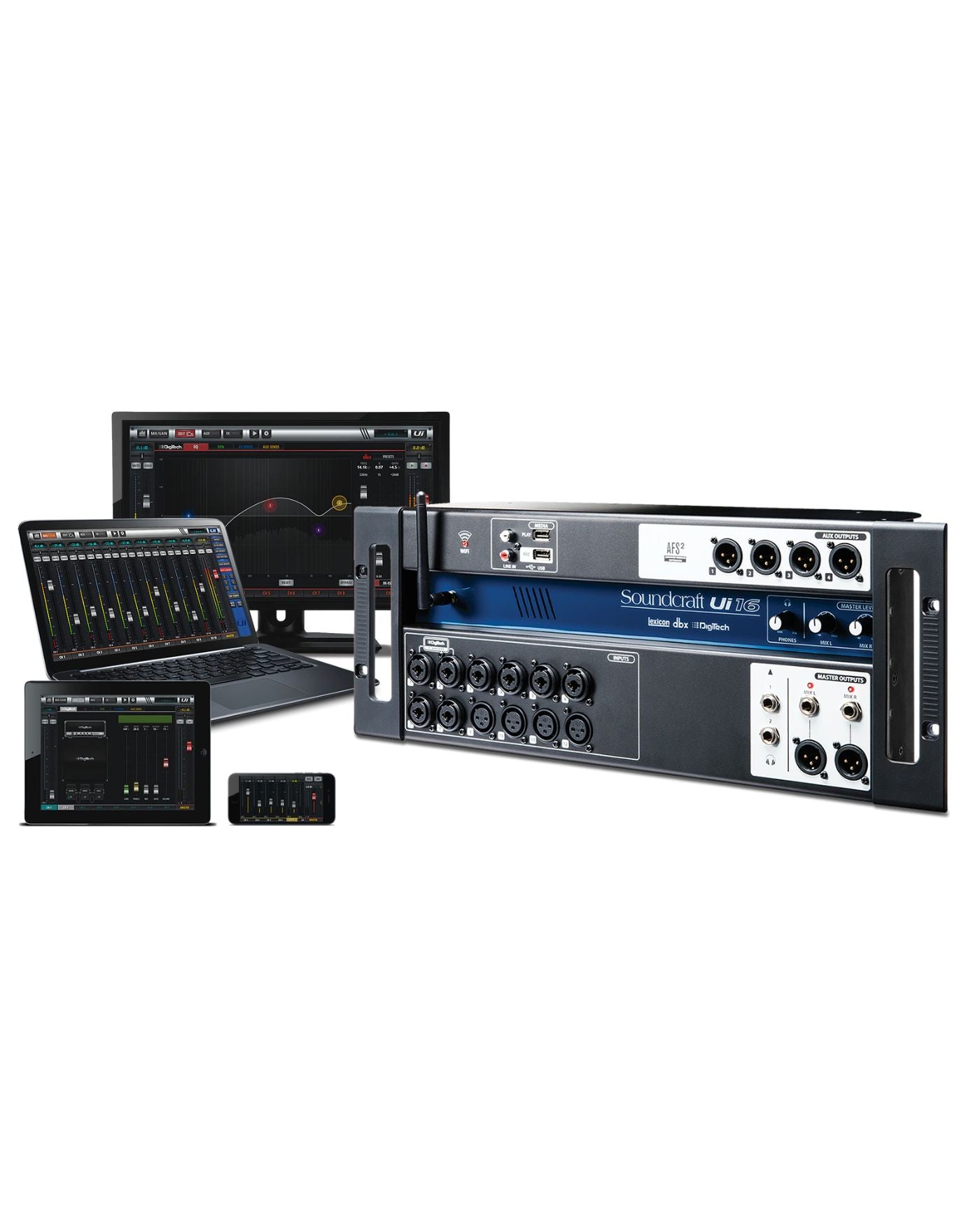

• Built-in Wi-Fi router — control from any device via web browser (iOS, Android, Windows, Mac, Linux)
• Up to 10 simultaneous remote control connections
• dbx AFS2 Advanced Feedback Suppression on all input channels
• Lexicon reverb and delay effects
• SSL-style channel processing: gate, compressor, 4-band parametric EQ per channel
• 6 aux/monitor sends + 1 FX send
• Stereo main outputs (XLR) + headphone output
• USB playback and recording (stereo)
• Subgroup and mute group support
• Rack-mountable 1U half-rack form factor
• Can be powered via PoE (Power over Ethernet) or included power supply

Specifications

• Inputs: 12 × XLR/TRS combo + 2 × RCA stereo + 1 × 3.5mm stereo
• Outputs: Stereo XLR main, 6 × XLR aux, headphone
• Control: Wi-Fi (built-in router), web browser-based
• Effects: dbx AFS2, Lexicon reverb & delay
• EQ: 4-band parametric per channel
• USB: Stereo playback & recording
• Power: AC adapter or PoE
• Form Factor: 1U half-rack
